• CPU
Intel® Socket LGA1200 for 11th Gen Intel® Core™ Processors & 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
Supports Intel® 14 nm CPU

• Chipset
H510

• Memoria
DDR4 3200(OC)/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture

• Gráficos
1 x DisplayPort 1.4
1 x D-Sub
1 x HDMI™ 2.0

• Ranuras de expansión
1 x PCIe 4.0/3.0 x16 slot
2 x PCIe 3.0 x1 slots

• Almacenamiento
M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)
4 x SATA 6Gb/s ports

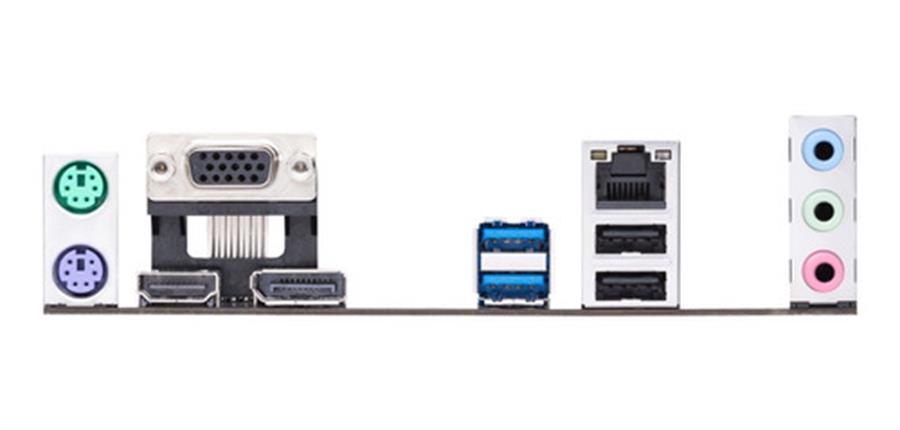

• Puertos E/S traseros
2 x USB 3.2 Gen 1 ports (2 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x DisplayPort
1 x D-Sub port
1 x HDMI™ port
1 x Intel® I219-V 1Gb Ethernet port
3 x Audio jacks
1 x PS/2 Keyboard (purple) port
1 x PS/2 Mouse (green) port

• Factor de forma
mATX Form Factor: 22.6cm x 21.1cm
